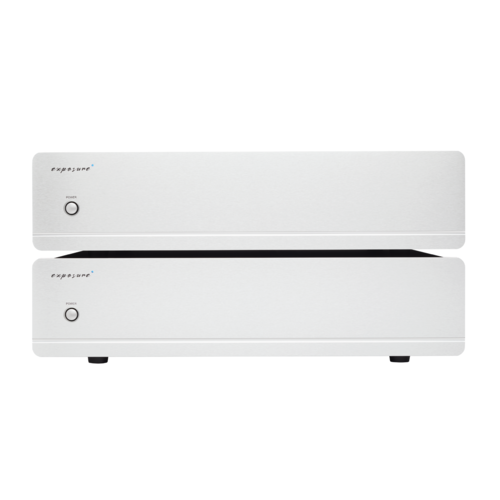

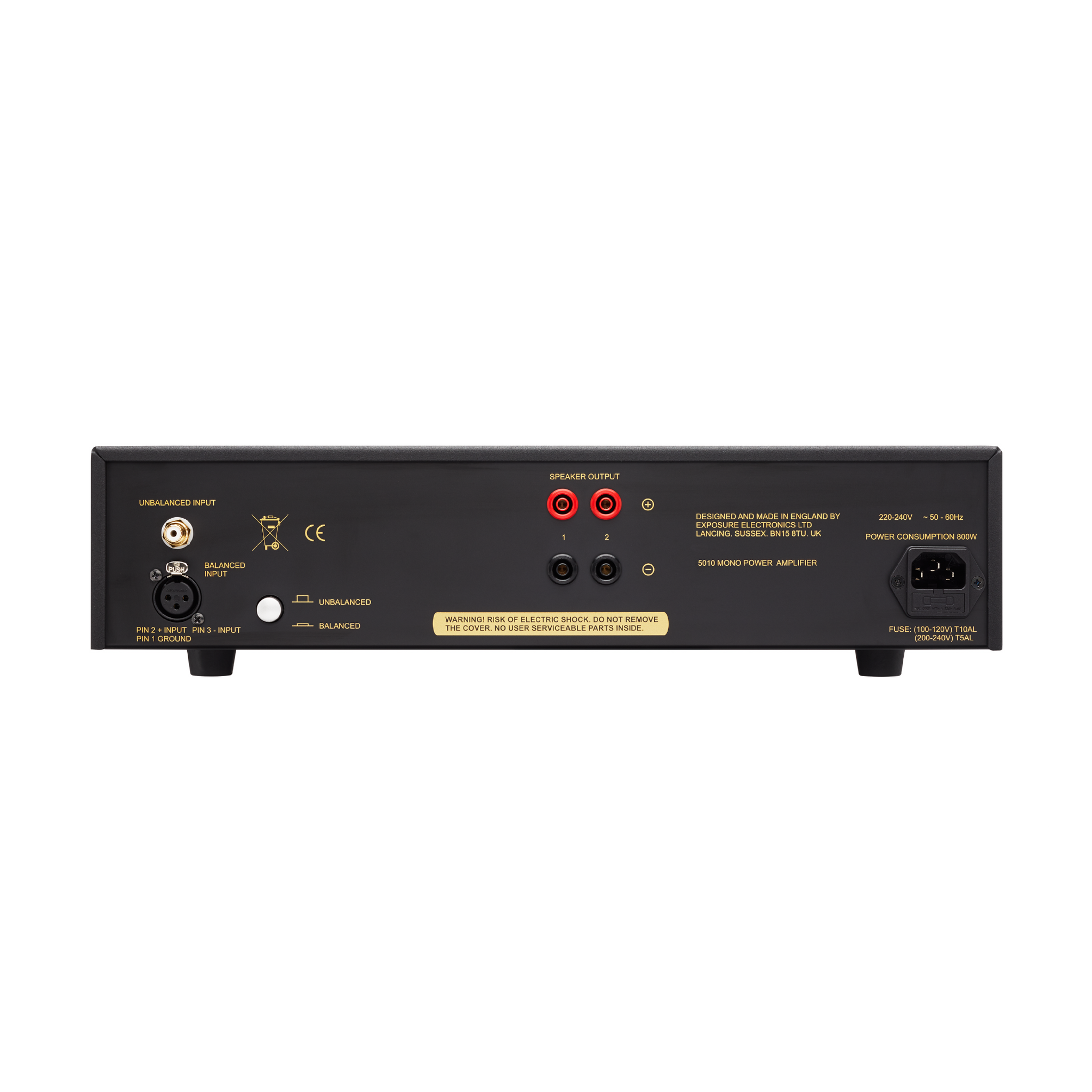

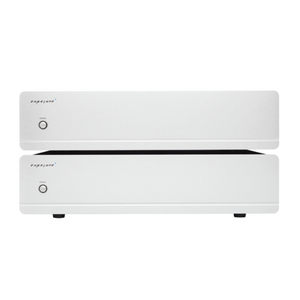

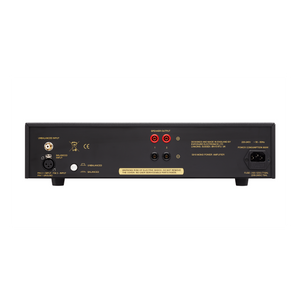

Exposure 5010 Mono Power Amplifier
Exposure 5010 Mono Power Amplifier
  • Load image into Gallery viewer, Exposure 5010 Mono Power Amplifier
  • Load image into Gallery viewer, Exposure 5010 Mono Power Amplifier

Exposure 5010 Mono Power Amplifier

Regular price
RM21,200.00 MYR
Sale price
RM21,200.00 MYR
Regular price
Sold out
Unit price
per

Please contact us if you are interested in this product at:

Joseph: +60102001992

Features
  • Large custom made toroidal transformer and screw terminal smoothing capacitors for power supply
  • All bipolar transistor design using carefully selected parts
  • DC coupled throughout
  • Electronic, non-invasive overload protection circuit and thermal trip
  • Bi-wire speaker outputs using high quality shrouded sockets
  • High quality all aluminium casework

Specification
  • Power Output : 200W into 8 Ohms, 370W into 4 Ohms
  • Input Impedance : 75K Ohms at 1KHz, unbalanced input
  • Frequency Response : -3dB at 52KHz, ref. 1KHz, unbalanced input
  • Total Harmonic Distortion : 1KHz <0.015% at 200W into 8 Ohms, 1KHz <0.005% at 100W into 8 Ohms
  • Signal to Noise ratio : >120dB, A weighted, ref. 200W, 8 Ohms output, >100dB A weighted, ref 1W, 8 Ohms output
  • Power Consumption : <800VA, 8 Ohms load
  • Mains Supply : 110/120V or 220/240V, 50/60Hz (factory set)
  • Dimensions - H x W x D : 115mm x 440mm x 300mm
  • Nett Weight (unpacked) : 14kg
  • Gross Weight (packed) : 16kg
