Power Output (Stereo) : 110W per channel at 1kHz into 8 Ohms
Pre-Amplifier Output : 1.9V for rated input (gain +18dB full volume)
Maximum Output : 7.7V RMS @ 1kHz
Frequency Response : 20Hz - 20kHz ± 0.5dB
Total Harmonic Distortion : <0.03% at rated output, ref. 1kHz
Signal to Noise Ratio : >100dB, ref. rated output
Channel Separation : >60dB, 20Hz - 20kHz
Input Impedance : 17K Ohms minimum (line input)
Input Sensitivity : 250mV
Features
• 110W RMS per channel into 8 Ohms

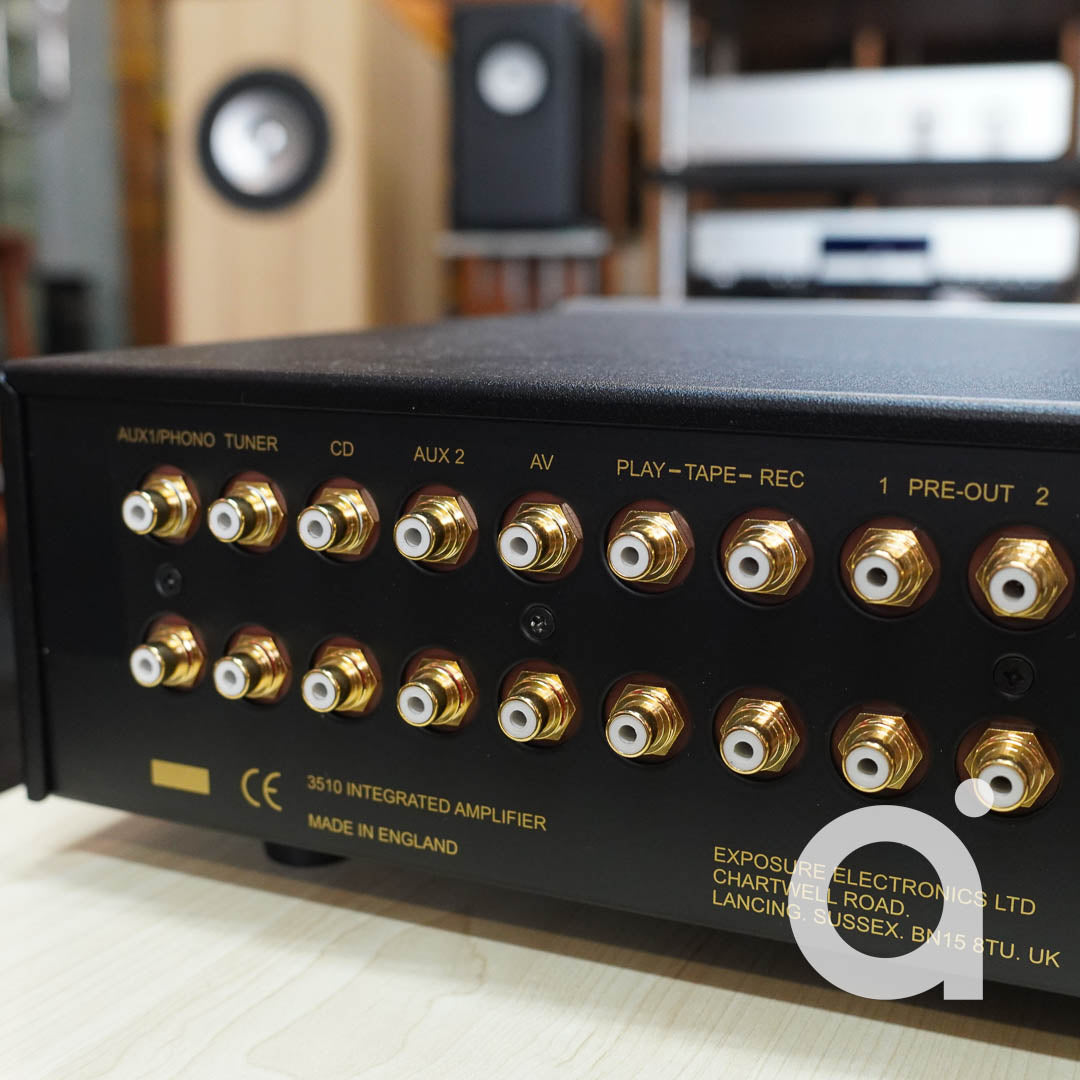

• Six line inputs
• Option to fit a MC or MM phono module OR
plug in DAC option
• Bi-wiring compatible
• Separate pre-amp output
• High quality capacitors used in the signal path
• Uniquely tuned short signal and power supply
path PCB
• Cascode circuitry utilized for improved power
supply immunity
• Fast bipolar transistor output stage for
dynamic and vivid performance
• All aluminium casework and extruded front
panel to control resonance and stray electromagnetic fields
• Remote control
